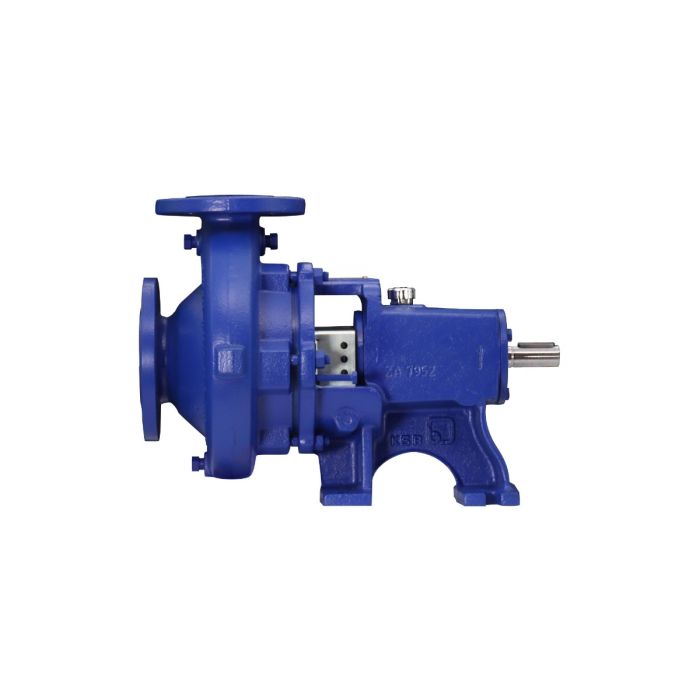

KSB Etanorm 100-80-400, centrifugal pump

The Etanorm is a horizontal volute casing pump, single-stage, with ratings and main dimensions to EN 733, long-coupled, in back pull-out design.

The Etanorm type series complies with the requirements to be met by standardised water pumps as per EC Directive 547/2012 as of 1 January 2013. As stipulated by ErP Regulation 2009/125/EC.

Construction

Volute casing and impeller with replaceable casing wear rings. Volute casing with integral pump feet. Impeller trimmed to match the specified duty point, enabling energy savings.

Bearings

Available with bearing bracket or bearing pedestal Nozzle orientation Axial suction nozzle, discharge nozzle pointing radially upwards.

Shaft Seal

Shaft equipped with replaceable shaft sleeve/shaft protecting sleeve in the shaft seal area.
